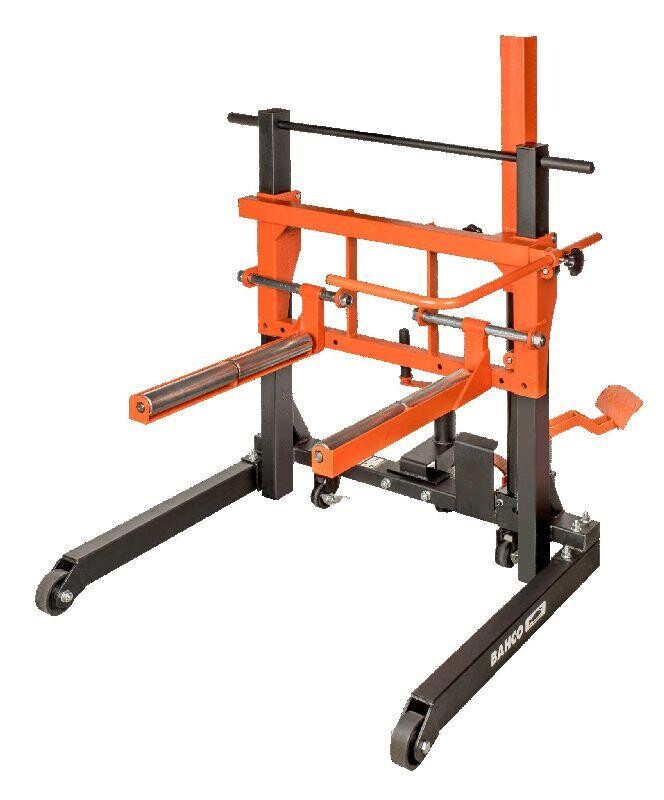

Wheel dolly max 600kg Ø min:300mm, Ø max:1300mm

600 kg hydraulic wheel dolly for helping users with the tyre changing
Capable of lifting wheels up to 600kg weight
Dolly wheel system allows tyre tilt to be changed up to 4.1 degrees, matching the vehicle´s wheel angle
Handle or foot pedal systems for wheel lifting
Perfect balance between quick lift and accurate approach
Equipped with a powerful hydraulic ram able to reach the maximum height in 40 pedal strokes
Five position adjustable mechanical system allows fitting a wide range of tyre diameters, from 300 mm to 1300 mm
Steel rollers allow the tyre to turn by itself to match the vehicle bolt positions
Safety features
- Foot pedal release, equipped with “dead man” safety feature
- Foot stopper to ensure the safety of the user
- Rear castors are equipped with a brake to secure the wheel dolly and prevent movement during tyre changing
Steel rollers to allow the tire to turn so it is aligned with the vehicle bolt position
Easy wheel transport thanks to the handles and four castors
CE certified according to Directive 2006/42/EC and BS EN1494

CAMPAIGN	YES
HEIGHT	440
LENGTH	980
PARCEL_LOCKER	NO
WIDTH	910
