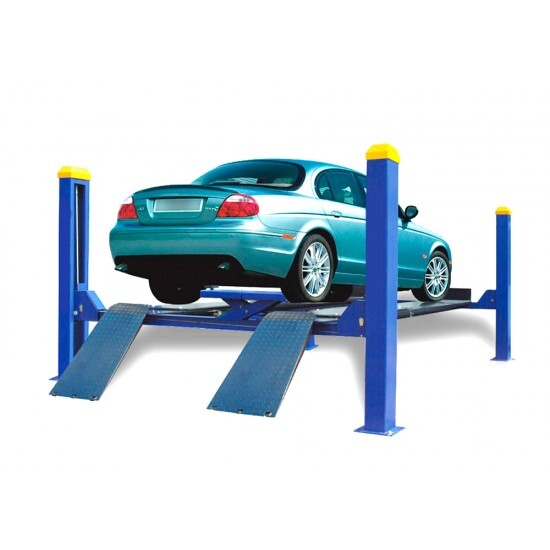

lifter with 4 posts 5t

advantages:

- stable, reinforced construction,
- rear axle expansion plates,
- universal sockets for the front axle turntable,
- adapted to work with geometry measuring devices,
- internal mobile hydraulic axle lift with a lifting capacity of 2500 kg,
- mounting anchors are included,
- optional 230v power supply,
- CE certificate.

technical parameters:

load capacity on the main platform 5000 [kg], on the auxiliary platform 2500 [kg]
engine power 2.2 [kw]
maximum lifting height on the main platform 1800 mm, on the auxiliary platform 350 [mm]
oil pressure 200 [bar]
power supply 400 [v]
drive type electro-hydraulic
concrete quality b25
concrete thickness 300 [mm]
number of columns 4
triple locking system manual mechanical
lift type: four-post, semi-automatic, geometry-adapted
column height 2200 mm

Note: Each lift has additional shipping costs! Ask your representative for more information.
