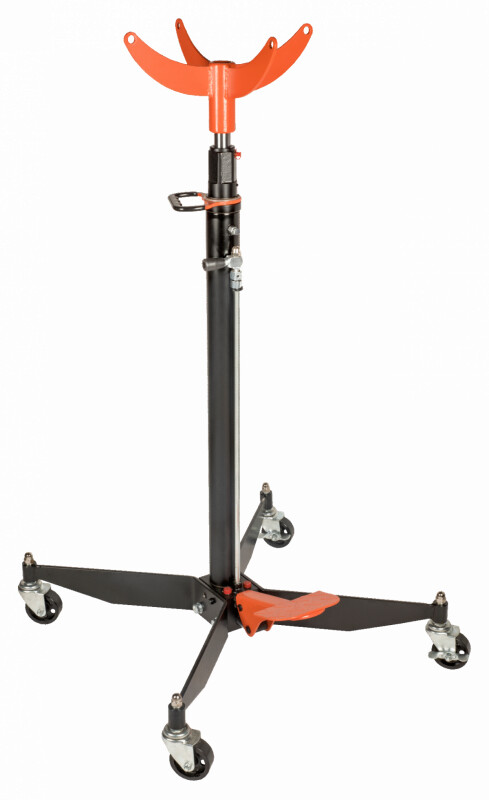

gearbox jack max 500kg 1175/2040mm

500kg gearbox jack for safe removal, installation or movement of gearboxes in culverts and under raised vehicles
the quick function allows full height to be reached in only 38 pump strokes
hard chrome plated rod and plunger
the large and comfortable pedal allows easy lifting from both the left and right side
wide base ensures stability during lifting and maneuvering
the saddle can be placed upside down and thanks to the addition of our standard rubber and steel saddles bh11500-04 and bh11500-05 (optional) the jack can also be used to lift car parts such as exhaust pipes, fuel tanks, shock springs or wheel hubs
strong rotating steel wheels (diameter 75 mm) are coated with pu for greater durability and optimal maneuverability
two wheels have brakes to prevent movement during loading/unloading
ce certificate according to directive 2006/42/eu and standard bs en1494

lifting capacity: 500 kg
lifting height: 1175 mm to 1985 mm
length: 66 cm
weight: 34.85 kg

height	213
length	1100
width	315
