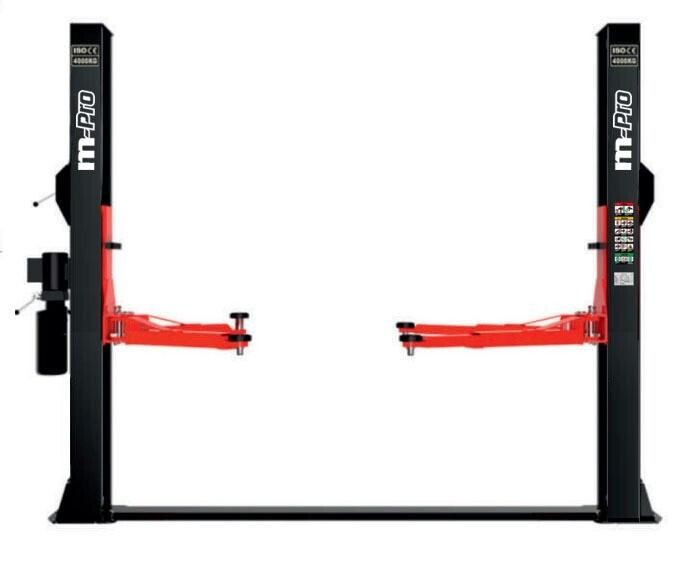

4.0t 2-post lift electrohydraulic lower beam. 400v m-pro

2-post electro-hydraulic low-beam lift. Post spacing 2880 mm and 4.0 t lifting capacity allows the lift to lift passenger cars. SUVs and short and medium wheelbase vans. The lift is equipped with a lever-controlled mechanical lowering and safety lock release. Minimum lift arm height 110 mm. Automatic lift arm locking system. Door edge protection on the lift posts. Minimum floor strength: c20/25 and minimum thickness: 150 mm.

technical information:

• lifting capacity 4 t
• lifting time 50 s
• fall time 40 s
• motor power supply 400 v / 50 hz
• telescopic legs 2nd and 3rd section 880 - 1440mm / 680 - 1230mm
• lift height 2824 mm
• mechanical safety locks controlled by a single lever
• post spacing 2880 mm
• total width 3500 mm
• max lifting height 2000 mm
• device weight 580 kg
